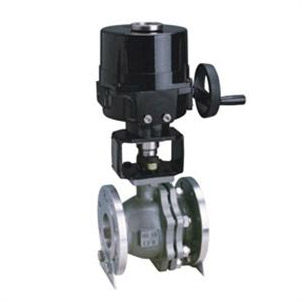

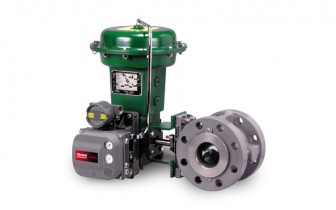

Ball Control Valve
Side entry Center Line or Eccentric Segmented ball valve are the best choice for shut off or high flow capacity fluid controls, designed based on API 6D in floating and trunnion mounted style. These types are available in two and three pieces body type.
- Soft and Metal Seated
- O Type
- V-notch
- Segmented Ball (Balanced and Eccentric type)
- Floating
- Trunnion Mounted
- Size: ½” ~ 20”
- Rating: ANSI Class 150 ~ 600
- Leakage Class: ANSI B16.104 IV, V
- Material: WCB, CF8, CF8M, WC6, WC9, CF3M, CF3, A352, LCB, A217, C5, etc
- End Connection: Flanged
- Temperature Range: -29ºC ~ 400ºC
- Design Standard: API 6D, ASME B16.34/ B15.5/ B16.25, NACE MR0175/ 0103, IEC 60534

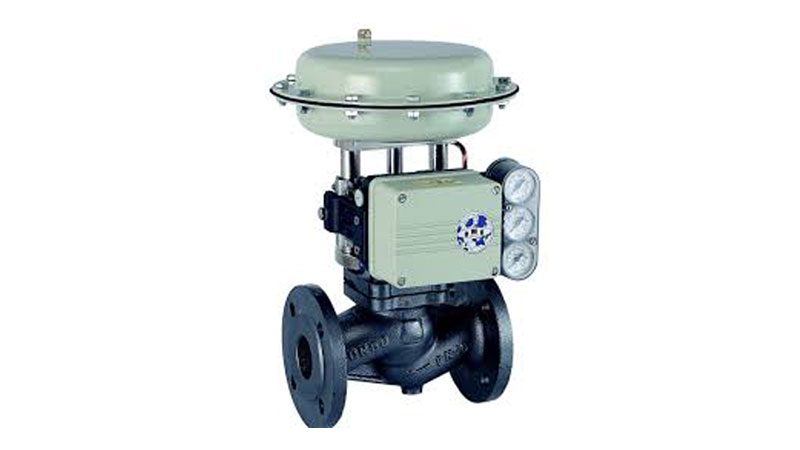

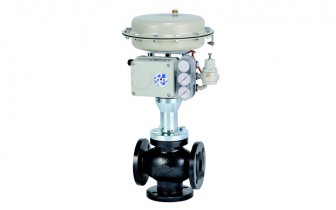

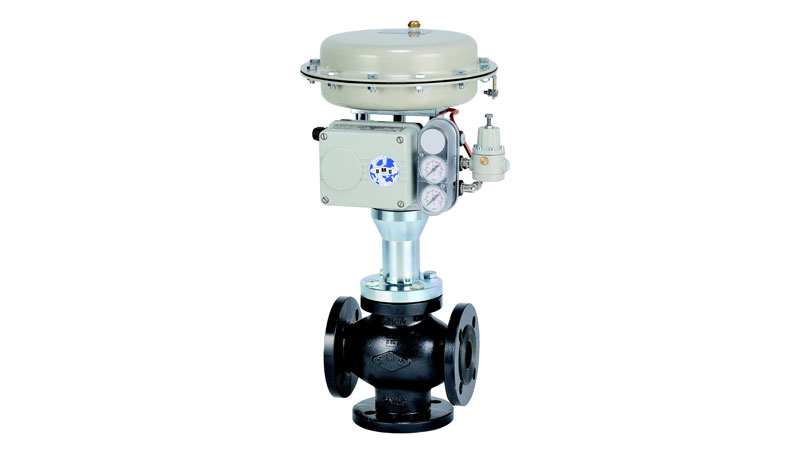

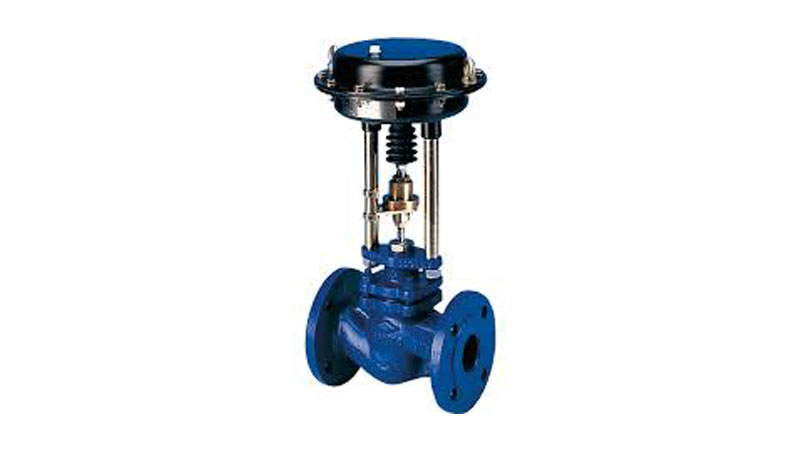

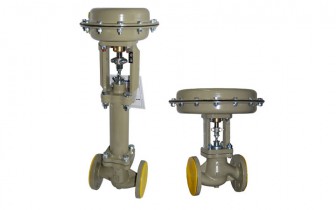

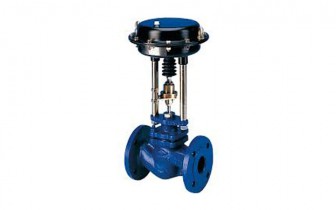

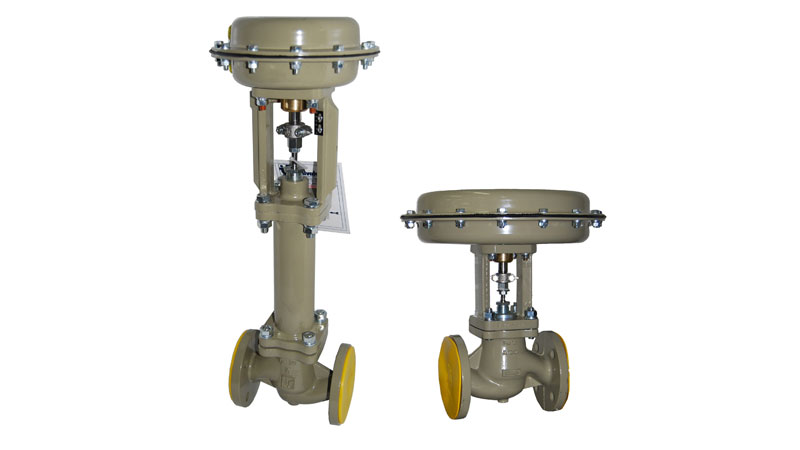

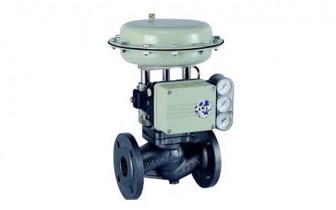

Globe Control Valve
Compact and Linear Control Valves: Suitable for oil & gas, refinery, chemical and fossil power applications
- Single Seated
- Pressure Balanced Single Seated
- Single Seat with balancing plug
- Cage Sleeve Design (with or without Noise Control Design)
- Single & Double Guide
- Low Temperature
- Cage Sleeve with Balancing Plug
- Cryogenic Service
- Bellow Seal
- PTFE lined Bellow Seal
- Size: ½” ~ 16”
- Rating: ANSI Class 150 ~ 1500
- Leakage Class: ANSI B16.104 IV, V, VI
- Material: WCB, CF8, CF8M, WC6, WC9, CF3M, CF3, A352, LCB, A217, etc
- End Connection: Flanged, Welded
- Temperature Range: -29ºC ~ 570ºC
- Design Standard: API 6D, ASME B16.34/ B15.5/ B16.25, NACE MR0175/ 0103, IEC 60534

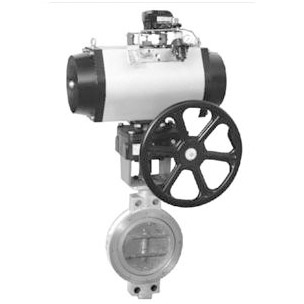

Butterfly Control Valve
Available in Double and triple eccentric design, laminated seat-ring and Soft and metal seated.
- Balanced
- Double Eccentric
- Triple Eccentric
- Size: 1” ~ 32”
- Rating: ANSI Class 150 ~ 300
- Leakage Class: ANSI B16.104 IV, V, VI
- Material: WCB, CF8, CF8M, CF3M, CF3, etc
- End Connection: Flanged, Wafer
- Temperature Range: -29ºC ~ 500ºC
- Design Standard: API 6D, ASME B16.34/ B15.5/ B16.25, NACE MR0175/ 0103, IEC 60534
Other Control Valve Types

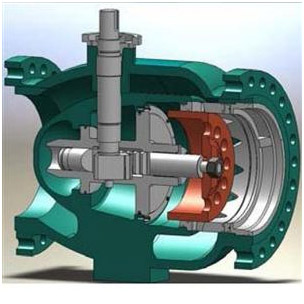

- Axial Flow Control Valve

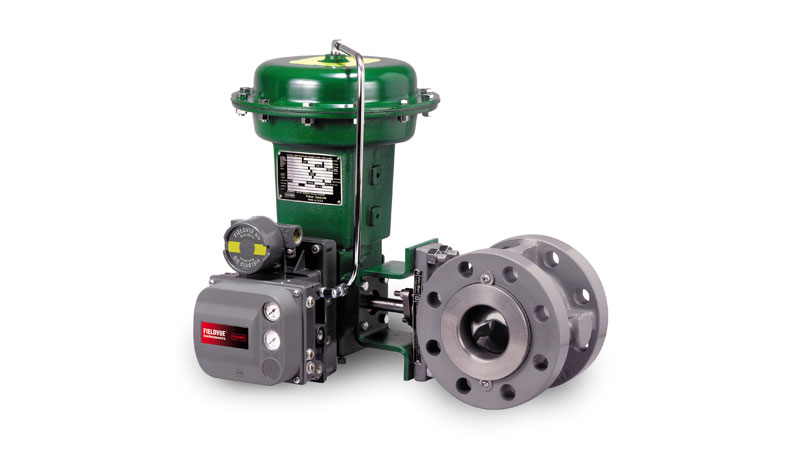

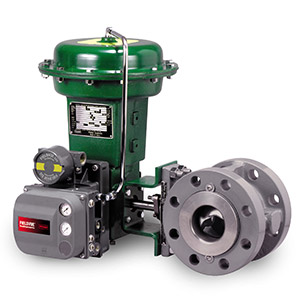

- Eccentric Rotary Control Valve
- Pneumatic Plug Valves
- Size: 4” ~ 20”
- Rating: ANSI Class 300 ~ 600
- Leakage Class: ANSI B16.104 IV, V
- Material: WCB, CF8, CF8M, CF3M, CF3, etc
- End Connection: Flanged
- Temperature Range: -29ºC ~ 500ºC
- Design Standard: API 6D, ASME B16.34/ B15.5/ B16.25, NACE MR0175/ 0103, IEC 60534

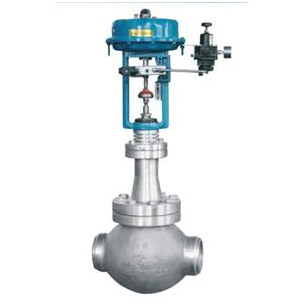

Sever Service
These types are Multi stage Anti cavitations and Erosion Resistant control valves, specially designed for applications with high temperature and pressure, solid contents and big pressure drop conditions.
- Multi Stage
- Drain Control Valve for Main Stream
- Feed Water Pump Recirculation
- Boiler & Main Stream Drain
- De-superheater Water Spray Control
- Boiler Continuous Blow Down
- Boiler Emergency Blow Down
- T Pattern Axial Multi Stage
- Size: ½” ~ 4”
- Rating: ANSI Class 600 ~ 2500
- Leakage Class: ANSI B16.104 IV
- Material: A105, A182 F22, A234, WP11, SS 304
- End Connection: Flanged, Welded
- Temperature Range: -29ºC ~ 570ºC
- Design Standard: API 6D, ASME B16.34/ B15.5/ B16.25, NACE MR0175/ 0103, IEC 60534
Control Valve Accessories
Actuator Features:

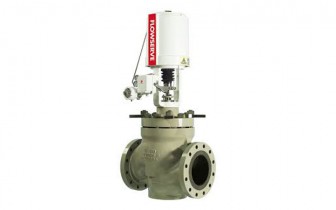

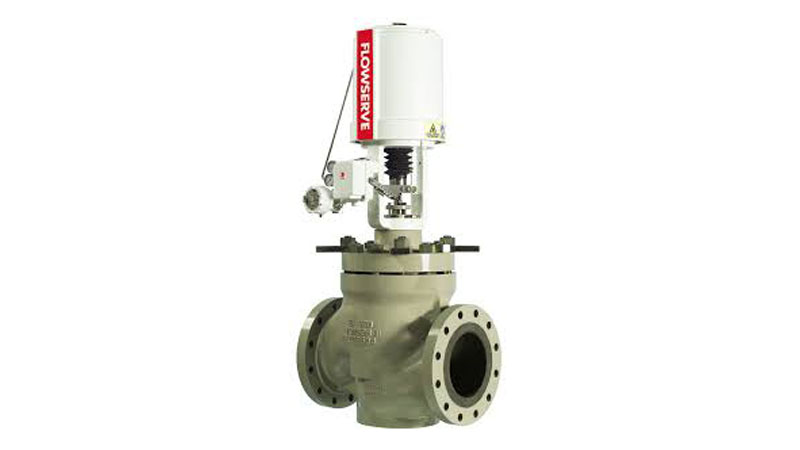

- Diaphragm multi spring, Piston & Electric Type
- Linear & Rotary
- Single & Double Act
- Explosion Proof, IP 66

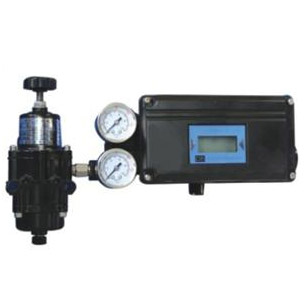

Positioner Features:
- Smart Digital and Conventional
- Designed with linear, quick open and equal
- percentage features
- Easy to Calibrate
- With or Without Gauge
- With Air Filter Regulator and Position Switch
- Explosion Proof, IP 66
