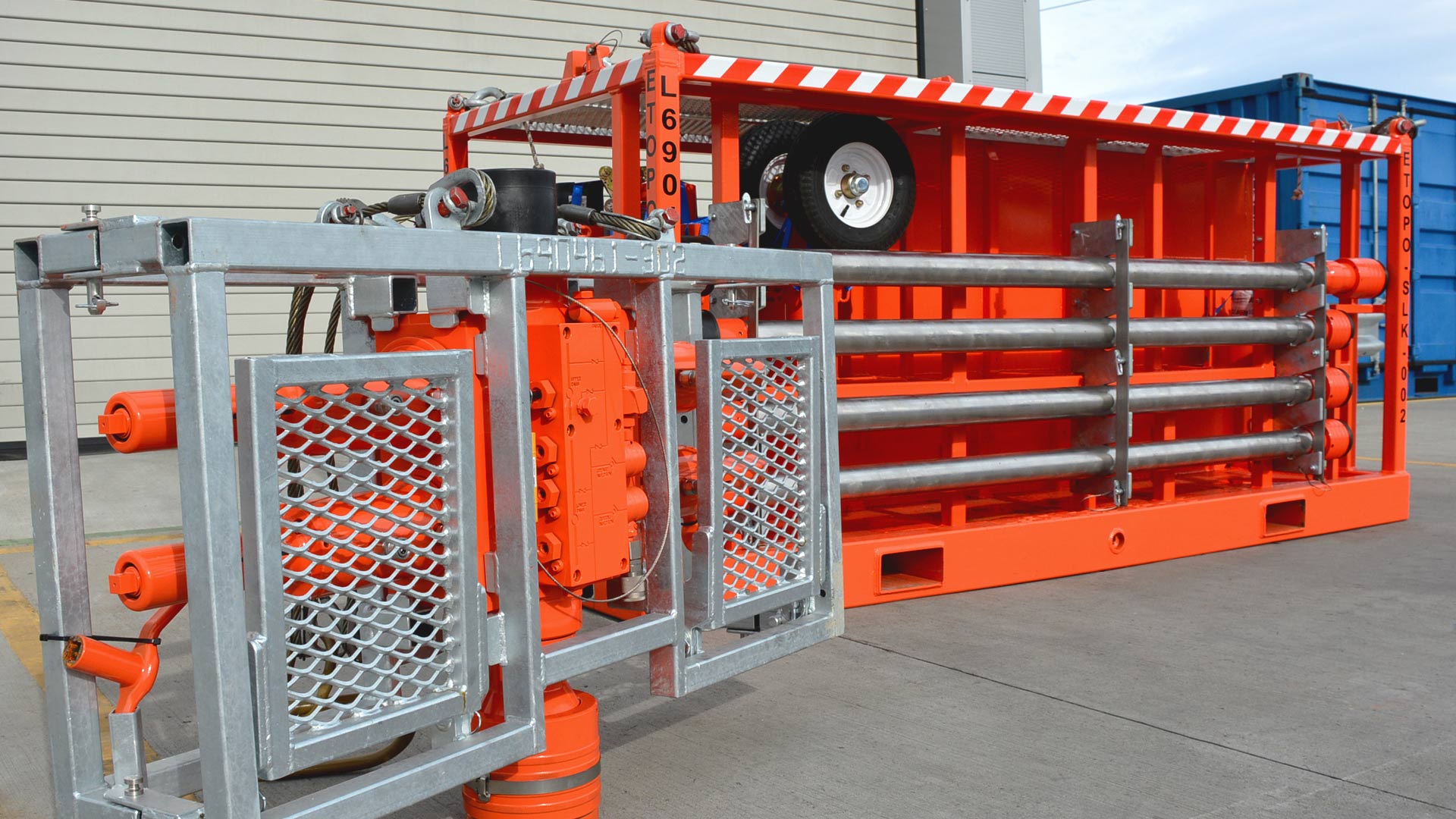

Complete Typical Silckline Pressure Control Equipment (Light Weight) String Rig-Up (Ready For Use) With Accessories

Location: Nassiriyah - Iraq

Client: Basra Oil Company (BOC)

Type: P

Scope of Work:

Supply of:

• "HYDRAULIC WIRELINE STUFFING BOX AND BLOWOUT PLUG FOR 10,000 PSI WORKING PRESSURE, H2S SERVICE, WITH 16"" DIA SHEAVE WITH ALUMINIUM BRACKET ASSEMBLY AND 4-3/4""-4X2 (3.750"" SEAL DIA) ELMAR QUICK UNION WITH THREAD PROTECTOR, DRESSED FOR 0.092""- 0.108"" LINE Service Temp: API 6A Classes P,S,T,U & V Manufacturing Standard: API 6A - PSL3 Design Ref: NACE MR0175/ ISO15156:2009"
• LINE SIZE KIT SB 10K H2S FOR 0.125" LINE. INCLUDES UPPER GLAND, LOWER GLAND, PACKING & BOTTOM SUB.
• LINE SIZE KIT SB 10K H2S FOR 0.092"- 0.108" LINE. INCLUDES 1 x UPPER GLAND, 1 x LOWER GLAND, 7 x PACKING & 1 x BOTTOM SUB.
• PACKING SB 1/2" 0.108" URETHANE 90D
• HYDRAULIC HAND PUMP ASSEMBLY 6,000 PSI WITH GAUGE AND QUICK CONNECT. FOR OPERATING A LINE WIPER / STUFFING BOX / PACK-OFF / TOOL CATCHER.
• 100 FT LONG 1/4" ID HYDRAULIC HOSE WITH SWAGED 1/4" NPT MALE ENDS, A SNAPTITE COUPLER ONE END AND A SNAPTITE NIPPLE ON THE OTHER END.
• "WIRELINE LIGHTWEIGHT LUBRICATOR SECTION FOR 10,000 PSI WORKING PRESSURE, H2S SERVICE, SIZE 3"" ID X 4 FT LONG WITH THREADED 4-3/4""-4X2 (3.750"" SEAL DIA) ELMAR E09 BOX TOP X PORTED 1/2"" NPT FEMALE PIN & COLLAR DOWN WITH THREAD PROTECTORS. Service Temp: API 6A Classes P,S,T,U & V Manufacturing Standard: API 6A - PSL3 Design Ref: NACE MR0175/ ISO15156:2009"
• "WIRELINE LIGHTWEIGHT LUBRICATOR SECTION FOR 10,000 PSI WORKING PRESSURE, H2S SERVICE, SIZE 3"" ID X 4 FT LONG WITH THREADED 4-3/4""-4X2 (3.750"" SEAL DIA) ELMAR E09 BOX TOP X PIN&COLLAR DOWN WITH THREAD PROTECTORS. Service Temp: API 6A Classes P,S,T,U & V Manufacturing Standard: API 6A - PSL3 Design Ref: NACE MR0175/ ISO15156:2009"
• WIRELINE LIGHTWEIGHT LUBRICATOR SECTION FOR 10,000 PSI WORKING PRESSURE, H2S SERVICE, SIZE 3"" ID X 8 FT LONG WITH THREADED 4-3/4""-4X2 (3.750"" SEAL DIA) ELMAR E09 BOX TOP X PORTED 1/2"" NPT FEMALE PIN & COLLAR DOWN WITH THREAD PROTECTORS. Service Temp: API 6A Classes P,S,T,U & V Manufacturing Standard: API 6A - PSL3 Design Ref: NACE MR0175/ ISO15156:2009"
• WIRELINE LIGHTWEIGHT LUBRICATOR SECTION FOR 10,000 PSI WORKING PRESSURE, H2S SERVICE, SIZE 3"" ID X 8 FT LONG WITH THREADED 4-3/4""-4X2 (3.750"" SEAL DIA) ELMAR E09 BOX TOP X PIN&COLLAR DOWN WITH THREAD PROTECTORS. Service Temp: API 6A Classes P,S,T,U & V Manufacturing Standard: API 6A - PSL3 Design Ref: NACE MR0175/ ISO15156:2009
• LUBRICATOR LIFTING CLAMP 92MM ID AND SPREADER BEAM FOR 3"" 5K/10K H2S LIGHTWEIGHT LUBRICATOR WITH (2) X 18FT LONG SLINGS WITH SHACKLES. SPREADER BEAM SWL 6 TONNES (6000 KG). LUBRICATOR CLAMP SWL 2 TONNES (2000 KG).
• "BLEED OFF SUB ASSEMBLY FOR 10,000 PSI WORKING PRESSURE, H2S SERVICE, SIZE 3""ID WITH (E09) 4-3/4""-4X2 (3.750"" SEAL DIA) ELMAR QUICK UNIONS WITH 1/2"" NPT (F) BLEED OFF PORT. Service Temp: API 6A Classes P,S,T,U & V Manufacturing Standard: API 6A - PSL3 Design Ref: NACE MR0175/ ISO15156:2009
• TEST CAP ASSEMBLY FOR 10,000 PSI WORKING PRESSURE, H2S SERVICE, WITH 4-3/4""-4X2 (3.750"" SEAL DIA) ELMAR E09 BOX X (1) 1/2"" NPT (F) PORT. Service Temp: API 6A Classes P,S,T,U & V Manufacturing Standard: API 6A - PSL3 Design Ref: NACE MR0175/ ISO15156:2009
• TEST PLUG ASSEMBLY FOR 10,000 PSI WORKING PRESSURE, H2S SERVICE, WITH 4-3/4""-4X2 (3.750"" SEAL DIA) ELMAR E09 PIN&COLLAR X (1) 1/2"" NPT (F) PORT Service Temp: API 6A Classes P,S,T,U & V Manufacturing Standard: API 6A - PSL3 Design Ref: NACE MR0175/ ISO15156:2009
• QUICK UNION LIFTING BAIL FOR 4-3/4""-4X2 (3.750"" SEAL DIA) ELMAR E09 UNION. SWL 2 TONNES (2000 KG). SUPPLIED WITH BOLT TYPE SHACKLE. Service Temp: API 6A Classes P,S,T,U & V Manufacturing Standard: API 6A - PSL3 Design Ref: NACE MR0175/ ISO15156:2009

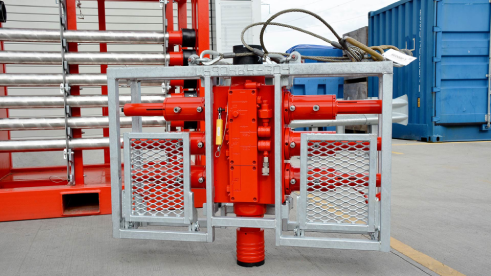

• DUAL HYDRAULIC COMPACT WIRELINE VALVE FOR 10,000 PSI WORKING PRESSURE, H2S SERVICE, SIZE 3"" ID WITH 4-3/4""-4X2 (3.750"" SEAL DIA) ELMAR E09 BOX TOP X PIN&COLLAR DOWN WITH THREAD PROTECTORS AND TYPE 'C' MANIFOLD BLOCK ASSEMBLY FOR GREASE INJECTION, GLYCOL INJECTION, PRESSURE MONITOR AND EQUALISATION FACILITY WITH METAL-METAL SEALING RING.COMING WITH RAM ASSY FOR 0.125"" WIRE Service Temp: API 6A Classes P,S,T,U & V Manufacturing Standard: API 6A - PSL3 Design Ref: NACE MR0175/ ISO15156:2009
• 2.5" - 3" RAM ASSEMBLY WITH Q-GUIDES, FOR ELMAR COMPACT OR LIGHTWEIGHT BOP. SEALS UP TO 0.125" WIRE DIAMETER, HNBR COMPOUND
• GALVANISED CAGE FOR 2-1/2" - 3" ID DUAL COMPACT WIRELINE VALVE WITH (2) WORK PLATFORMS WITH SLING AND SHACKLES
• HAND PUMP ASSEMBLY FOR WIRELINE VALVE / TOOL TRAP, 3K WORKING PRESSURE. WITH 4-WAY VALVE, GAUGE & QUICK CONNECTORS.
• 50 FT LONG 1/4" ID HYDRAULIC HOSE WITH SWAGED 1/4" NPT MALE ENDS, A SNAPTITE COUPLER ONE END AND A SNAPTITE NIPPLE ON THE OTHER END.
• "Y"-HOSE ASSEMBLY FOR WIRELINE VALVE - "OPEN". Y HOSE ASSY FOR BOP CLOSE,1/4" H SERIES
• PUMP-IN-SUB ASSEMBLY FOR 10,000 PSI WORKING PRESSURE, H2S SERVICE, SIZE 3"" ID WITH 4-3/4""-4X2 (3.750"" SEAL DIA) ELMAR E09 BOX TOP X PIN & COLLAR DOWN WITH (1) 2"" 1502 WECO SIDE OUTLET INCLUDING BLANKING PLUG AND 1/2"" NPT PORT WITH THREAD PROTECTORS. Service Temp: API 6A Classes P,S,T,U & V Manufacturing Standard: API 6A - PSL3 Design Ref: NACE MR0175/ ISO15156:2009
• PLUG VALVE 1"C/W 2"1502 MxF ENDS ALUMN BRONZE INSERT 15/16"BORE DD-NL 10K H2S -29 DEG C TO +121 DEG C MSL3 CE MARK + COO MARK THIRD PARTY REVIEW WITNESS-BV PAINT SPEC NOV 5054 COLOUR BS216 GREEN (NOVGHD SG) AG 22-03-18
• WELLHEAD ADAPTER FLANGE FOR 3,000 PSI WORKING PRESSURE H2S SERVICE, SIZE 3"" ID WITH (E09) 4-3/4""-4X2 (3.750"" SEAL DIA) ELMAR LIGHTWEIGHT QUICK UNION FEMALE BOX X 3-1/8"" 3,000 LB API FLANGE WITH RX 31 RING GROOVE. Service Temp: API 6A Classes P,S,T,U & V Manufacturing Standard: API 6A - PSL3 Design Ref: NACE MR0175/ ISO15156:2009"
• WELLHEAD ADAPTER FLANGE FOR 5,000 PSI WORKING PRESSURE H2S SERVICE, SIZE 3"" ID WITH (E09) 4-3/4""-4X2 (3.750"" SEAL DIA) ELMAR LIGHTWEIGHT QUICK UNION FEMALE BOX X 3-1/8"" 5,000 LB API FLANGE WITH RX 35 RING GROOVE. Service Temp: API 6A Classes P,S,T,U & V Manufacturing Standard: API 6A - PSL3 Design Ref: NACE MR0175/ ISO15156:2009"
• WELLHEAD FLANGE ADAPTER FOR 3,000 PSI WORKING PRESSURE, H2S SERVICE, SIZE 3"" ID WITH 4 3/4""-4X2THD (3.750"" SEAL DIA) ELMAR E09 QUICK UNION FEMALE BOX X 4 1/16"" 3,000 LB 6B FLANGE WITH R37 API RING GROOVE. Service Temp: API 6A Classes P,S,T,U & V Manufacturing Standard: API 6A - PSL3 Design Ref: NACE MR0175/ ISO15156:2009
• WELLHEAD FLANGE ADAPTER ASSEMBLY FOR 5,000 PSI WORKING PRESSURE, H2S SERVICE, SIZE 3"" ID WITH 4-3/4""-4X2 (3.750"" SEAL DIA) ELMAR E09 BOX TOP X 4-1/16"" 6B 5,000 LB FLANGE WITH R-39 API RING GROOVE WITH THREAD PROTECTOR. Service Temp: API 6A Classes P,S,T,U & V Manufacturing Standard: API 6A - PSL3 Design Ref: NACE MR0175/ ISO15156:2009
• WELLHEAD ADAPTOR FLANGE ASSEMBLY FOR 3,000 PSI WORKING PRESSURE H2S SERVICE SIZE 2 9/16"" ID WITH 4 3/4""-4X2 (3.750"" SEAL DIA) ELMAR QUICK UNION FEMALE BOX X 2 9/16"" 3,000LB 6B FLANGE WITH R-27 API RING GROOVE. Service Temp: API 6A Classes P,S,T,U & V Manufacturing Standard: API 6A - PSL3 Design Ref: NACE MR0175/ ISO15156:2009
• WELLHEAD FLANGE ADAPTER ASSEMBLY FOR 5,000 PSI WORKING PRESSURE, H2S SERVICE, SIZE 2.56"" ID WITH 4-3/4""-4X2 (3.750"" SEAL DIA) ELMAR E09 BOX TOP X 2-9/16"" 5,000 LBS 6B FLANGE WITH R-27 API RING GROOVE. Service Temp: API 6A Classes P,S,T,U & V Manufacturing Standard: API 6A - PSL3 Design Ref: NACE MR0175/ ISO15156:2009
• WELLHEAD FLANGE ADAPTER FOR 10,000 PSI WORKING PRESSURE, H2S SERVICE, SIZE 2.56"" ID WITH 4-3/4""-4X2 (3.750"" SEAL DIA) ELMAR E09 BOX TOP X 2-9/16"" 6BX 10,000 LB FLANGE WITH BX 153 API RING GROOVE WITH THREAD PROTECTOR. Service Temp: API 6A Classes P,S,T,U & V Manufacturing Standard: API 6A - PSL3 Design Ref: NACE MR0175/ ISO15156:2009
• WELLHEAD FLANGE ADAPTER ASSEMBLY FOR 10,000 PSI WORKING PRESSURE, H2S SERVICE, SIZE 3"" ID WITH 4-3/4""-4X2 (3.750"" SEAL DIA) ELMAR E09 BOX TOP X 4-1/16"" 6BX 10,000 LB FLANGE WITH BX-155 API RING GROOVE WITH THREAD PROTECTOR. Service Temp: API 6A Classes P,S,T,U & V Manufacturing Standard: API 6A - PSL3 Design Ref: NACE MR0175/ ISO15156:2009"
• QUICK TEST SUB ASSEMBLY FOR 10,000 PSI WORKING PRESSURE, H2S SERVICE, SIZE 3"" ID WITH 4-3/4""-4X2 (3.750"" SEAL DIA) ELMAR E09 BOX TOP X PIN&COLLAR DOWN WITH THREAD PROTECTORS. Service Temp: API 6A Classes P,S,T,U & V Manufacturing Standard: API 6A - PSL3 Design Ref: NACE MR0175/ ISO15156:2009
• HAND PUMP ASSEMBLY FOR QUICK TEST SUB WITH PRESSURE GAUGE & QUICK CONNECTOR, 10K PSI WP.
• HOSE ASSEMBLY FOR 10,000 PSI WITH 1/4" ID WITH SWAGED 1/4" NPT MALE ENDS WITH QC FOR QUICK TEST SUB.
• HYDRAULIC TOOL TRAP ASSEMBLY WITH EXTERNAL INDICATOR FOR 10,000 PSI WORKING PRESSURE, H2S SERVICE, SIZE 3"" ID WITH 4-3/4""-4X2 (3.750"" SEAL DIA) ELMAR E09 BOX TOP X PIN & COLLAR DOWN WITH THREAD PROTECTORS. Service Temp: API 6A Classes P,S,T,U & V Manufacturing Standard: API 6A - PSL3 Design Ref: NACE MR0175/ ISO15156:2009
• HYDRAULIC HAND PUMP ASSEMBLY FOR WIRELINE VALVE / TOOL TRAP, 3K WORKING PRESSURE. WITH 4-WAY VALVE, GAUGE & QUICK CONNECTORS.
• 50 FT LONG 1/4" ID HYDRAULIC HOSE WITH SWAGED 1/4" NPT MALE ENDS, A SNAPTITE COUPLER ONE END AND A SNAPTITE NIPPLE ON THE OTHER END.
• WIRE FORCE TESTER INCLUDES HYDRAULIC LOAD CELL, HAND PUMP AND CHART RECORDER. TWO PIECE CONSTRUCTION WITH UPPER & LOWER TRAY AND INSTRUCTIONS ON LID. SELF CONTAINED IN CASE WITH CARRY HANDLE. TENSILE RATING: 0-2,000 KG OR 0-4,410 LBS.
• ROPE SOCKET FOR 0.108"X0.125" LINESIZE DUAL STYLE
• 800 SERIES 10,000 PSI PRESSURE TEST UNIT, STAINLESS STEEL FRAME, (20 LITRE) STAINLESS STEEL TANK, AIR DRIVEN HIGH VOLUME AND HIGH-PRESSURE PUMPS, MACHINE ENGRAVED STAINLESS STEEL COLOUR CODED CONTROL PANEL WITH 6" 0-15,000 PSI GAUGE. TO BE SUPPLIED IN ACCORDANCE WITH SALES SPECIFICATION DOCUMENT SSD-690535V01
• HOSE ASSY 6MM 50FT FOR 10,000 PSI PTU
• STAND ALONE CHART RECORDER, 8" 0-15,000 PSI 2/8 HR MECHANICAL CLOCK WITH 10FT (3 METRE) HOSE. MOUNTED IN STAINLESS STEEL FRAME & SUPPLIED WITH TRANSPORT CASE. CE MARKED. TO BE SUPPLIED IN ACCORDANCE WITH SALES SPECIFICATION DOCUMENT SSD-690767V02.
• CHART RECORDER CONNECTION KIT FOR 800 SERIES PTU, 10K. INCLUDES TEE AND QUICK CONNECTORS TO ALLOW 10K CHART RECORDER HOSE TO BE ATTACHED.
